OMNISTAR

OMNISTAR

Unrivalled modular lighting solution for high-power industrial, tunnel, large area and sport applications

Omschrijving

OMNISTAR is an unrivalled indoor and outdoor luminaire. It offers a fast ROI as it delivers efficient lighting with high energy savings and low maintenance requirements, even in the most demanding environments.
Thanks to its robust design, high impact resistance and low weight, the OMNISTAR LED luminaire can withstand high wind and vibrations. It has successfully passed the ball-throwing test, making it ideal for lighting warehouses, industrial halls, tunnels, sports arenas, airports, car parks, road and motorway junctions, toll plazas and even roundabouts.
An explosion-proof version is available for environments where it is required.
With recyclable parts and high-energy efficiency, OMNISTAR enables you to reduce your carbon footprint.
This lighting solution is proposed with various mounting accessories to suit the specific needs of your project.
OMNISTAR has various dimming options and is connected-ready for your future Smart City or Tunnel requirements.

  • Cost-effective LED lighting solution
  • Equipped with the latest cutting-edge technology for high performance, a long lifespan and an effective thermal management, the OMNISTAR guarantees a performing solution that will reduce energy and maintenance costs as well as decrease the quantity of luminaires that need to be installed.

  • Modular approach for performance and flexibility
  • This modular luminaire is available with a variety of mounting and inclination options. It can be surface mounted, suspended or installed on a high-mast with a bracket of one, two or three units.
    OMNISTAR can be fitted with BlastFlexTM, LensoFlex®2, LensoFlex®3 and LensoFlex®4 photometric engines, as well as reflectors (ReFlexoTM) for sports, tunnel and apron lighting applications. OMNISTAR also offers counter beam lighting solutions for tunnels.

  • Versatile lay-outs thanks to remote gears
  • With its remote gears, OMNISTAR enables any type of configuration, ensuring flexibility to manage crucial aspects such as weight, access, environment lay-out and footprint. It helps the design in demanding applications such as tunnels and high-mast installations. Quick connectors on both the luminaire and the gear box facilitate the installation.

  • A long-lasting solution
  • OMNISTAR is designed to operate reliably in every part of the world, even in the most extreme conditions. It offers a high tightness level and high impact/vibration resistance to maintain performance throughout its life cycle and reduce maintenance operations. OMNISTAR is also protected against electrical surge.

Industrial lighting solutions for indoor and outdoor environments

OMNISTAR is an ideal alternative for lighting a variety of indoor and outdoor industrial applications such as docks, warehouses, loading bays, industrial halls, and large car parks. It ensures low energy consumption, improved visibility with white light, limited maintenance, and a longer lifespan.
This LED luminaire has been designed to operate even in extreme temperatures such as hot production lines or cold warehouses.

Perfect for sports lighting

OMNISTAR is also perfect for lighting sport venues including large stadiums when excellent colour rendering and vertical illumination are required for high-definition TV recording and broadcasting, to avoid flickering and capture vivid images for viewers at home.
Available with precise photometric distributions, the OMNISTAR guarantees visual comfort, excellent visibility, uniformity and colour rendition for both the players and the spectators so that they may enjoy every minute.

Meeting the different tunnel lighting requirements

The OMNISTAR is an excellent alternative to HID lamps, providing the adequate lighting levels for the critical entrance area of a tunnel.
It is designed to meet the different tunnel lighting requirements with easy eye adaptation, low glare and excellent visibility for safety, while offering a low total cost of ownership.
With its optimised power/form factor and resistant housing, the OMNISTAR LED luminaire is built to withstand harsh operating conditions over time.
Thanks to a series of dedicated control systems, the OMNISTAR solution can provide various lighting scenarios for your tunnel.

Avoid any risk of danger with the explosion-proof version

A potentially explosive atmosphere exists when a mixture of air gases, vapours, mists, or dusts combine in a way that can ignite under certain operating conditions.
The OMNISTAR explosion-proof version was specifically designed for potentially volatile atmospheres, which can be found in offshore platforms, petrochemical plants, mines, flour mills and industrial halls.

OMNIBOX: flexibility and easiness

The OMNIBOX is a separate driver box that can be easily plugged in to an LED optical unit with quick connectors to facilitate both installation and access for maintenance operations. One OMNIBOX can host the drivers and power supply of up to 4 OMNISTAR luminaires.

Kenmerken

Aanbevolen installatiehoogte (m)
8.0 -
45.0
Armatuur outpux flux (lm)
8200 -
67700
Energieverbruik (W)
73.0 -
594.0
Armatuur efficiëntie - tot (lm/W)
160
Kleur weergave index (CRI)
70
80
90
Opwaartse lichtstroom (ULOR)
0%
Behuizing
Aluminium
Lichtkap
Polycarbonate
Dichtheid
Schokweerstand
Alle configuraties
Bedrijfstemperatuur range (Ta)
-30°C up to +55°C / -22° F up to 131°F
Depending on the luminaire configuration. For more details, please contact us.

Afmetingen en bevestiging

AxBxC (mm | inch)
532x80x530 | 20.9x3.1x20.9
Gewicht (kg | lbs)
14.0 | 30.8
Montagemogelijkheden
Side-entry slip-over – Ø76mm
Direct mounting on ceiling
Bracket enabling adjustable inclination
Surface mounting
Post-top slip-over – Ø76mm
Hook(s) for suspension
Post-top slip-over – Ø76-108mm

Controlesystemen

OMNISTAR control options

OMNISTAR offers a series of dimming/control options:
• Custom dimming profile
• 1 - 10V
• DALI
• Remote management
• DMX-RDM (entertainment)

OMNISTAR is connected-ready for your future Smart City or Tunnel requirements.

The OMNISTAR is also compatible with control systems for tunnels. The Advanced Tunnel Solution (ATS) has been designed to adapt the lighting levels according to conditions in the tunnel, to monitor the power consumption and to report any failures.

Control link

Installatie en onderhoud

Easy installation of the optical units and gear box

The installation varies depending on the chosen version. OMNISTAR is composed of 1, 2 or 3 optical units, a remote gear box (OMNIBOX), cables with quick connectors and various mounting systems,
As an option, OMNISTAR is delivered with quick connectors for an effortless installation. The inclination angle can be easily adjusted on-site.
To facilitate mounting and maintenance, the OMNIBOX can be easily connected to the optical unit thanks to quick connectors.

Accessoires en versies

Standard U bracket

The version with a steel wall bracket is available with fixations for post-top mounting on a Ø60 or Ø76-108mm pole or for side-entry mounting on a Ø60 or a Ø76mm spigot.

Large U bracket (wall mounting)

Thanks to the version with the large U bracket, the OMNISTAR is perfectly suitable for wall mounting.

Large U bracket (pole mounting)

The OMNISTAR can also be installed on a large U bracket for pole mounting with a U bolt (Ø76-108mm) or with a post-top adapter (for Ø60mm spigot).

Tiltable ceiling mounting

The tiltable ceiling version offers a higher flexibility for on-site adjustments when mounted on a ceiling

Fixed ceiling mounting

This version is ideal for ceiling installations that require the luminaire to stay in a fixed position.

Suspension chain

The suspension chain is perfect for indoor environments such as industrial halls.

2 optical units, tilted together

A post-top mounting on a Ø76-108mm pole is available for 2 optical modules that need to be tilted

2 optical units, tilted separately

Another alternative is having the two optical modules that are tilted separately with a side-entry mounting on a Ø76mm spigot.

3 optical units, tilted together

For environments requiring a higher lighting level, it is also possible to have three optical modules that can be tilted together. This version is designed for a post-top mounting on a Ø76-108mm pole.

Downloads

OMNISTAR

OMNISTAR

Ongeëvenaarde modulaire verlichtingsoplossing voor high-power industriële, tunnel, grote gebieden en sport toepassingen

Omschrijving

OMNISTAR is een ongeëvenaard binnen- en buiten armatuur. Het biedt een snelle ROI aangezien het efficiënte verlichting met hoge energiebesparingen en lage onderhoudsvereisten levert, zelfs in de meest veeleisende omgevingen.
Dankzij het robuuste ontwerp, de hoge slagvastheid en het geringe gewicht is het OMNISTAR LED armatuur bestand tegen hoge windsnelheden en trillingen. Het is met success geslaagd voor de ‘ball-throwing test’, waardoor het ideaal is voor het verlichten van bedrijfshallen, industriële hallen, tunnels, sportlocaties, luchthavens, parkeerplaatsen, weg- en snelwegverbindingen, tol pleinen en zelfs rotondes.
Een explosie-proof versie is beschikbaar voor omgevingen waar dat vereist is.
Met recyclebare onderdelen en hoge energie-efficiëntie stelt de OMNISTAR u in staat uw ecologische voetafdruk te verminderen.
Deze verlichtingsoplossing is beschikbaar met diverse montageaccessoires die aan de specifieke behoeften van uw project voldoen.
OMNISTAR heeft verschillende dim opties en is gereed voor toekomstige Smart City of Tunnel toepassingen.

  • Kostenbesparende LED verlichtingsoplossing
  • De OMNISTAR is uitgerust met de nieuwste geavanceerde technologie voor hoge prestaties, een lange levensduur en een effectief thermisch beheer en garandeert een oplossing die de energie- en onderhoudskosten zal verminderen en de hoeveelheid armaturen, die moeten worden geïnstalleerd, kan verlagen.

  • Modulaire aanpak voor prestaties en flexibiliteit
  • Dit modulaire armatuur is leverbaar met diverse montage- en hellingshoek mogelijkheden. Het kan hangend bevestigd worden, gemonteerd aan het plafond of worden geïnstalleerd op een hoge mast met een uithouder voor één, twee of drie units. OMNISTAR kan worden uitgerust met BlastFlexTM, LensoFlex®2, LensoFlex®3 en LensoFlex®4 fotometrische modules, evenals reflectoren (ReFlexoTM) voor sport, tunnel en platform verlichtingstoepassingen. OMNISTAR biedt ook ‘counter beam’ verlichtingsoplossingen voor tunnels.

  • Veelzijdige indelingen dankzij externe driver
  • Met zijn externe driver box maakt OMNISTAR elk type configuratie mogelijk, om te zorgen voor flexibiliteit op cruciale aspecten zoals gewicht, toegang, omgevingsindeling en ecologische voetafdruk. Het helpt het ontwerp in veeleisende toepassingen zoals tunnels, platforms en hoge mast installaties. Snelle connectoren op zowel de armaturen als de driver box faciliteren de installatie.

  • Een duurzame oplossing
  • OMNISTAR is ontworpen om betrouwbaar te opereren in alle delen van de wereld, zelfs in de meest extreme omstandigheden. Het biedt een hoog dichtheidsniveau en hoge trillingsweerstand om de prestaties te handhaven gedurende de gehele levenscyclus en het onderhoud te verminderen. OMNISTAR is beschermd tegen piekspanning.

Industriële verlichtingsoplossing voor binnen- en buiten omgevingen

OMNISTAR is een ideaal alternatief voor het verlichten van een verscheidenheid van industriële binnen en buiten toepassingen zoals dokken, magazijnen, laaddocks, industriële hallen en grote parkeerplaatsen. Het zorgt voor een laag energieverbruik, verbeterde zichtbaarheid met wit licht, beperkt onderhoud en een langere levensduur. Dit LED armatuur is ontworpen om te werken in extreme temperaturen, zoals warme productielijnen of koude pakhuizen.

Perfect voor sportverlichting

OMNISTAR is ook perfect voor het verlichten van sport podia zoals grote stadions, waar uitstekende kleurweergave en verticale verlichting zijn vereist voor high definition TV-opname en uitzending, om te voorkomen dat er flikkerende en haperende beelden ontstaan voor de kijkers thuis. De OMNISTAR is beschikbaar met precieze fotometrische distributies en garandeert visueel comfort, een uitstekende zichtbaarheid, uniformiteit en kleurweergave voor zowel de spelers als de toeschouwers, zodat ze iedere minuut kunnen genieten.

Voldoet aan de verschillende vereisten voor tunnelverlichting

De OMNISTAR is een uitstekend alternatief voor HID lampen, door het verstrekken van adequate verlichtingsniveaus voor de kritische entreegebieden van een tunnel. Het is ontworpen om te voldoen aan de verschillende tunnelverlichting eisen met gemakkelijke oog aanpassing, lage schittering en een uitstekende zichtbaarheid voor de veiligheid, terwijl het een lage ‘total cost of ownership’ biedt.
Met zijn geoptimaliseerde power/form factor en resistente behuizing is de OMNISTAR gebouwd om in de loop van de tijd harde bedrijfsomstandigheden te weerstaan.
Dankzij een reeks toegewijde besturingssystemen kan de OMNISTAR verlichtingsoplossing verschillende scenario’s voor uw tunnel bieden.

Voorkom elk risico of gevaar met de explosie-proof versie

Een potentieel explosieve atmosfeer bestaat wanneer een mengsel van gassen, dampen, nevel of stof op een manier combineert die onder bepaalde bedrijfsomstandigheden kan ontbranden. De OMNISTAR explosie-proof versie is special ontworpen voor potentieel veranderlijke atmosferen, die gevonden kunnen worden in offshore platforms, petrochemische fabrieken, mijnen, graan molens en industriële hallen.

OMNIBOX: flexibiliteit en gemak

De OMNIBOX is een aparte driver box die gemakkelijk kan worden aangesloten op een optische LED unit met snelle connectoren om zowel de installatie en de toegang voor onderhoudswerkzaamheden te vergemakkelijken. Eén OMNIBOX kan de drivers en de voeding van maximaal 4 OMNISTAR armaturen behuizen.

Kenmerken

Aanbevolen installatiehoogte (m)
8.0 -
45.0
Armatuur outpux flux (lm)
8200 -
67700
Energieverbruik (W)
73.0 -
594.0
Armatuur efficiëntie - tot (lm/W)
160
Kleur weergave index (CRI)
70
80
90
Opwaartse lichtstroom (ULOR)
0%
Behuizing
Aluminium
Lichtkap
Polycarbonaat
Dichtheid
Schokweerstand
Alle configuraties
Bedrijfstemperatuur range (Ta)
-30 °C tot +55 °C
Afhankelijk van de armatuur configuratie. Voor meer informatie kunt u contact met ons opnemen.

Afmetingen en bevestiging

AxBxC (mm | inch)
532x80x530 | 20.9x3.1x20.9
Gewicht (kg | lbs)
14.0 | 30.8
Montagemogelijkheden
Opschuifbevestiging horizontaal – Ø76mm
Directe bevestiging op plafond
Beugel met instelbare hellingshoek
Opbouwmontage
Opschuifbevestiging verticaal – Ø76mm
Haak(en) voor hangende bevestiging
Opzetbevestiging paaltop – Ø76-108mm

Controlesystemen

OMNISTAR controle opties

OMNISTAR biedt een reeks van dim/controle opties:
· Aangepast dim profiel
· 1 - 10V
· DALI
· Beheer op afstand
· DMX-RDM (entertainment)

OMNISTAR is connected-ready voor uw toekomstige Smart City- of Tunnelvereisten.

De OMNISTAR is ook compatibel met besturingssystemen voor tunnels. De Advanced Tunnel Solution (ATS) is ontworpen om de verlichtingsniveaus aan te passen aan de omstandigheden in de tunnel, om het stroomverbruik te monitoren en eventuele storingen te rapporteren.

Control link

Installatie en onderhoud

Eenvoudige installatie van de optische units en de driver box

De installatie varieert afhankelijk van de gekozen versie. OMNISTAR is samengesteld uit 1, 2 of 3 optische units, een externe driver box (OMNIBOX), kabels met snelle connectoren en diverse bevestigingssystemen. Optioneel kan de OMNISTAR geleverd worden met snelle connectoren voor een moeiteloze installatie. De hellingshoek kan gemakkelijk ter plaatse worden aangepast. Om de montage en het onderhoud te vergemakkelijken kan de OMNIBOX gemakkelijk worden aangesloten op de optische units dankzij de snelle connectoren.

Accessoires en versies

Standaard U-beugel

De versie met de stalen beugel is leverbaar voor verticale montage op Ø60 of Ø76-108mm mast of voor horizontale montage op een Ø60 of een Ø76mm buis.

Grote U-beugel (wandmontage)

Dankzij de versie met de grote U-beugel is de OMNISTAR perfect geschikt voor wandmontage.

Grote U-beugel (mastbevestiging)

De OMNISTAR kan ook worden geïnstalleerd op een grote U-beugel voor mastbevestiging met een U-bout (Ø76-108mm) of met een paaltop adapter (voor Ø60mm buis).

Kantelbare plafondbevestiging

De kantelbare plafond-versie biedt een grotere flexibiliteit voor aanpassingen ter plaatse bij montage aan een plafond.

Vaste plafondbevestiging

Deze versie is ideaal voor plafond installaties die vereisen dat het armatuur in een vaste positie blijft.

Hangende ketting

De hangende ketting is perfect voor binnen omgevingen zoals industriële hallen.

2 optische units, tegelijk beweegbaar

Een verticale bevestiging op een Ø76-108mm mast is beschikbaar voor 2 optische modules die moeten worden gekanteld.

2 optische units, separaat beweegbaar

Een ander alternatief is met twee optische units die afzonderlijk worden gekanteld met een horizontale bevestiging op een Ø76mm buis.

3 optische units, tegelijk beweegbaar

Voor omgevingen die een hoger lichtniveau vereisen, is het ook mogelijk om drie optische modules te hebben die met elkaar kunnen worden gekanteld. Deze versie is ontworpen voor een paaltop montage op een Ø76-108mm mast.

OYO

OYO

Provide the right urban lighting to create a city in which people love to live.

Omschrijving

Designing attractive spaces where people want to spend time is simple thanks to the OYO urban LED luminaire. With its modern and refined curves, this outdoor lighting solution helps create a unique identity by day and by night.
Perfectly suited to lighting urban roads, narrow or residential streets, car parks or even squares and bike paths, OYO creates comfortable and safe environments that encourage social activity, for healthier and more enjoyable moments.
This highly-efficient decorative urban light post is also connected-ready for your future Smart City requirements.

  • Appealing design by Michel Tortel
  • The elegant and robust design of the OYO is perfectly suited for urban lighting. The renowned French designer, Michel Tortel, drew its refined and subtle shapes.
    With its arched design on two refined supports and a waved embellishment plate, this decorative luminaire brings a contemporary touch of elegance to the city.
    This LED luminaire perfectly integrates urban areas, from residential streets, squares, narrow or urban roads to bike paths or car parks.

  • Make your city unique at night
  • The OYO urban light post is the ideal solution for differentiating your town or city, thanks to its modern and sophisticated design. Not only does it contribute to enhancing and creating a strong nocturnal identity for cities, it can also significantly reduce the energy bill.
    With OYO, help people find their way and increase safety to create a city that pedestrians, cyclists and drivers love to live in!

  • Save time on installation
  • The installation of some luminaires can be challenging and lead to frustration and wasted time. The OYO facilitates installation, as it is supplied with a pre-fitted cable. It only requires a simple electrical connection and securing 6 screws on the pole.
    This quick installation saves considerable time and money to mount more luminaires in a day.

  • More than just a beautiful luminaire
  • More than just an aesthetic solution for urban lighting, OYO is equally impressive through its high performance and energy savings.
    Based on the proven LensoFlex® photometrical engines, it offers a wide range of light distributions to provide a harmonious compromise between safety, comfort and energy efficiency for various environments.

Versatility to meet all your challenges

As the most versatile urban decorative luminaire, OYO provides both asymmetrical and symmetrical light distributions. It relies on the flexibility and performance of the LensoFlex® photometrical engines to offer a wide range of solutions that meet the challenges of the various applications in a city landscape.
More than an elegant luminaire, OYO is a connected-ready urban lighting solution available with various control and sensor options to achieve maximum performance from your lighting networks and create attractive spaces where people feel safe and comfortable.

A sustainable lighting solution

Sustainability focuses on meeting today’s needs without compromising those of future generations. In addition to its recyclable components, OYO contributes to a circular economy by considerably reducing energy consumption.

Kenmerken

Aanbevolen installatiehoogte (m)
4.0 -
8.0
Isolatieklasse
Nominale spanning
Overspanningsbeveiliging (kV)
10
Controle protocollen
Bijbehorend controlesysteem
Sensor(en)
Armatuur outpux flux (lm)
800 -
10100
Energieverbruik (W)
10.5 -
88.9
Armatuur efficiëntie - tot (lm/W)
139
Kleur weergave index (CRI)
70
80
Opwaartse lichtstroom (ULOR)
0%
ULR
0%
Behuizing
Aluminium
Optiek
Lichtkap
Polycarbonate
Dichtheid
Schokweerstand
Alle configuraties
Bedrijfstemperatuur range (Ta)
-30°C up to +55°C / -22°F up to 131°F with wind effect
Depending on the luminaire configuration. For more details, please contact us.

Afmetingen en bevestiging

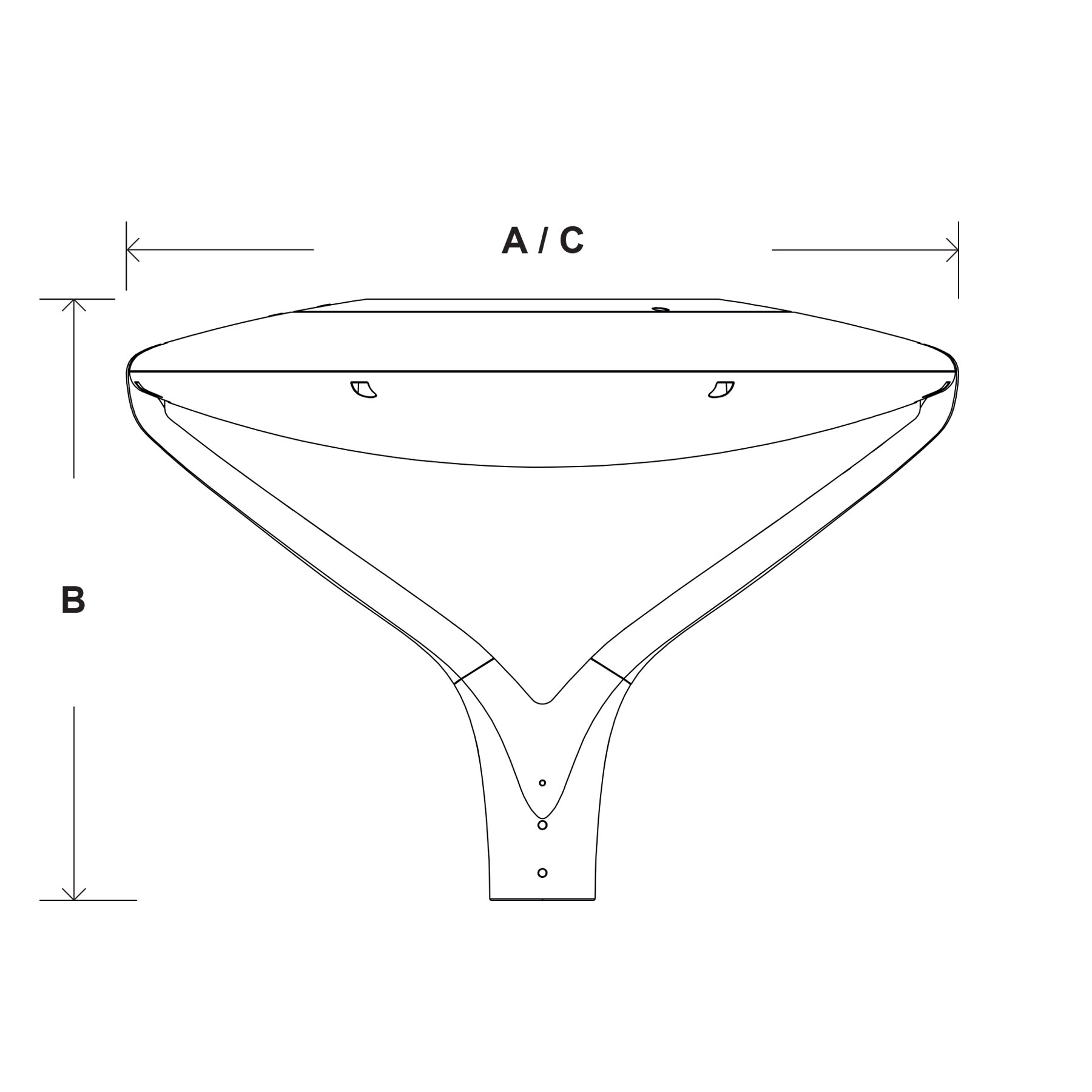

AxBxC (mm | inch)
610x440x610 | 24.0x17.3x24.0
Gewicht (kg | lbs)
10.0 | 22.0
Montagemogelijkheden
Post-top slip-over – Ø60mm

Controlesystemen

Control options for OYO

OYO is available with a series of dimming options:
• DALI
• 1-10V
• Bi-Power
• AmpDim
• Custom dimming profile
• Remote management

As an option, this luminaire can be equipped with a NEMA 7-pins or a Zhaga socket for your future smart city requirements.

Control link

Installatie en onderhoud

Slip-over mounting

Designed as a post-top luminaire, OYO has a slip-over fixation that can be installed on a Ø60mm with a 80mm long spigot. As an option, a PIR sensor can also be fixed on the mounting part.

Masten en uithouders

Easy to combine with any type of decorative column

OYO can be mounted on a series of existing columns (with a Ø60mm spigot), ranging from 4m/13’ to 8m/26’. For new or regenerated urban areas, Schréder can also provide a range of steel, aluminium or fibreglass decorative straight columns.

OYO

OYO

Verstrekt de juiste stedelijke verlichting om een stad te creëren waarin mensen graag verblijven

Omschrijving

Het ontwerpen van aantrekkelijke ruimtes waar mensen graag verblijven is eenvoudig dankzij het OYO LED armatuur. Met zijn moderne en verfijnde lijnen helpt deze buitenverlichtingsoplossing bij het creëren van een unieke identiteit.
Perfect geschikt voor het verlichten van stedelijke wegen, smalle straten of woonwijken, parkeergarages en zelfs pleinen en fietspaden. OYO creëert comfortabele en veilige omgevingen die sociale activiteiten stimuleren, voor gezondere en meer plezierige momenten.
Dit zeer efficiënte decoratieve armatuur is ook gereed voor toekomstige Smart City toepassingen.

  • Aantrekkelijk ontwerp van Michel Tortel
  • Het elegante en robuuste ontwerp van de OYO is uitermate geschikt voor stadsverlichting. De gerenommeerde Franse ontwerper, Michel Tortel, ontwierp de verfijnde en subtiele vormen.
    Met zijn gewelfde ontwerp op twee verfijnde steunen en zijn embellishment plate, geeft dit decoratieve armatuur een eigentijdse elegantie aan de stad.
    Dit LED armatuur integreert in stedelijke gebieden, van woonwijken, pleinen, smalle of stedelijke wegen tot fietspaden of parkeerterreinen.

  • Maak uw stad uniek tijdens de nacht
  • Het stedelijke armatuur OYO is de ideale oplossing voor het differentiëren van uw dorp of stad, dankzij het moderne en verfijnde ontwerp. Het draagt niet alleen bij aan het verbeteren en het creëren van een sterke nachtelijke identiteit voor steden, maar kan de energierekening ook beduidend verminderen.
    Met OYO kunt u mensen helpen hun weg te vinden en de veiligheid verhogen voor het creëren van een stad waar voetgangers, fietsers en chauffeurs met plezier leven!

  • Bespaar tijd bij de installatie
  • De installatie van sommige armaturen kan uitdagend zijn en leiden tot frustratie en verspilde tijd. De OYO vergemakkelijkt de installatie omdat het voorbekabeld wordt geleverd. Het vereist slechts een eenvoudige elektrische aansluiting en het vastdraaien van 6 schroeven op de mast. Deze snelle installatie bespaart veel tijd en geld om meer armaturen in een dag te monteren.

  • Meer dan alleen een mooi armatuur
  • De OYO is meer dan alleen een esthetische oplossing voor stedelijke verlichting, zijn hoge prestaties en energiebesparingen zijn even indrukwekkend.
    Gebaseerd op de bewezen LensoFlex® fotometrische modules biedt het een breed scala aan lichtverdelingen om een harmonieuze compromis tussen veiligheid, comfort en energie-efficiëntie te bieden voor verschillende omgevingen.

Veelzijdigheid, om aan al uw stadsuitdagingen te voldoen

Als het meest veelzijdige decoratieve armatuur biedt de OYO zowel asymmetrische als symmetrische lichtverdelingen. Het is gebaseerd op de flexibiliteit en de prestaties van de LensoFlex® fotometrische modules voor het bieden van een breed scala aan oplossingen die voldoen aan de uitdagingen van de verschillende toepassingen in een stadslandschap. OYO is meer dan een elegant armatuur, het is een connected-ready verlichtingsoplossing die verkrijgbaar is met verschillende besturings- en sensoropties om maximale prestaties uit uw verlichtingsnetwerken te halen en aantrekkelijke ruimtes te creëren waar mensen zich veilig en comfortabel voelen.

Een duurzame lichtoplossing

Duurzaamheid richt zich op het voldoen aan de behoeften van vandaag zonder afbreuk te doen aan die van toekomstige generaties. De OYO draagt bij aan een circulaire economie door, naast de recyclebare componenten, het energieverbruik aanzienlijk te verminderen.

Kenmerken

Aanbevolen installatiehoogte (m)
4.0 -
8.0
Isolatieklasse
Nominale spanning
Overspanningsbeveiliging (kV)
10
Controle protocollen
Bijbehorend controlesysteem
Sensor(en)
Armatuur outpux flux (lm)
800 -
10100
Energieverbruik (W)
10.5 -
88.9
Armatuur efficiëntie - tot (lm/W)
139
Kleur weergave index (CRI)
70
80
Opwaartse lichtstroom (ULOR)
0%
ULR
0%
Behuizing
Aluminium
Optiek
Lichtkap
Polycarbonaat
Dichtheid
Schokweerstand
Alle configuraties
Bedrijfstemperatuur range (Ta)
-30°C tot +55°C / -22°F tot 131°F met wind effect
Afhankelijk van de armatuur configuratie. Voor meer informatie kunt u contact met ons opnemen.

Afmetingen en bevestiging

AxBxC (mm | inch)
610x440x610 | 24.0x17.3x24.0
Gewicht (kg | lbs)
10.0 | 22.0
Montagemogelijkheden
Opschuifbevestiging verticaal – Ø60mm

Controlesystemen

Controle opties voor OYO

OYO is beschikbaar met een reeks van dim opties:
• DALI
• 1-10V
• Bi-Power
• Dim profiel
• Beheer op afstand

Optioneel kan dit armatuur worden uitgerust met een 7-pins NEMA-aansluiting of Zhaga-aansluiting voor het bieden van oplossingen voor Smart City toepassingen.

Control link

Installatie en onderhoud

Opschuifbevestiging

De OYO is ontworpen als een paaltop armatuur met een opschuifbevestiging die kan worden geïnstalleerd op een Ø60mm mast met een 80mm lange buis. Optioneel kan een PIR-sensor gemonteerd worden op het bevestigingsstuk.

Masten en uithouders

Gemakkelijk te combineren met elk type decoratieve mast

OYO kan worden gemonteerd op een reeks van bestaande masten (met een Ø60mm buis), variërend van 4 mtr tot 8 mtr. Voor nieuwe stedelijke gebieden biedt Schréder ook een reeks van stalen, aluminium of glasvezelversterkte composiet masten.

PIANO

PIANO

Het ideale instrument voor het verbeteren van stedelijke omgevingen

Omschrijving

Verander buitenruimtes in aangename landschappen met de Piano range. Dankzij het esthetische ontwerp en de hoogwaardige afwerking brengt het functionele Piano armatuur veiligheid, welzijn en comfort voor de burgers in woonwijken, voetgangersgebieden en stadswegen. De Piano biedt de mogelijkheid om overal en altijd het juiste licht te bieden in stedelijke omgevingen door gebruik te maken van de allernieuwste LED-technologie en controle oplossigen. De Piano range biedt steden het ideale hulpmiddel om de lichtniveaus te verbeteren, energiebesparingen te genereren en hun ecologische voetafdruk te verminderen.

  • Bespaar energie
  • Voor een substantiële vermindering van het energieverbruik is het Piano gamma uitgerust met LEDs en diverse opties voor dimmen en beheer op afstand. Deze functionele LED verlichtingsoplossing biedt een concurrerend alternatief voor armaturen uitgerust met traditionele lichtbronnen.

  • Uw duurzame keuze
  • Door het combineren van het beste van LED-technologie met een breed scala van controlesystemen vermindert de Piano lichtoplossing het energieverbruik en de CO2-uitstoot gelinkt aan stedelijke verlichting. Bovendien is deze moderne reeks van straatverlichting gebouwd met volledig recyclebare materialen en kan ter plaatse worden onderhouden om de levensduur van de armaturen te verlengen. Deze aanpak ondersteunt uw duurzaamheids- en circulaire economie beleid.

  • Esthetisch ontwerp voor alle buitenruimtes
  • Het Piano LED armatuur, ontworpen door Michel Tortel, draagt bij aan het creëren van esthetische en aangename buitenruimtes. Dankzij de range met 2 verschillende afmetingen biedt de Piano effectieve verlichting met hetzelfde ontwerp voor straten, passages en grote boulevards.

  • Gereed voor Smart City
  • Om het juiste licht te bieden, altijd en overal, om u een nauwkeurig overzicht te geven van uw verlichtingskosten, om uw onderhoudswerkzaamheden efficient te organiseren en om samen te werken met diensten van derden, is de Piano verlichtingsoplossing connected-ready.

Kenmerken

Aanbevolen installatiehoogte (m)
4.0 -
12.0
Overspanningsbeveiliging (kV)
4
10
20
Controle protocollen
Socket optie(s)
Bijbehorend controlesysteem
Sensor(en)
Armatuur outpux flux (lm)
1817 -
15768
Energieverbruik (W)
1.0 -
125.0
Armatuur efficiëntie - tot (lm/W)
13963
LED kleur temperatuur
Kleur weergave index (CRI)
70
80
Opwaartse lichtstroom (ULOR)
0%
Behuizing
Aluminium
Optiek
Lichtkap
Gehard glas
Dichtheid
Schokweerstand
Alle configuraties
Bedrijfstemperatuur range (Ta)
-30 °C tot +45 °C
Afhankelijk van de armatuur configuratie. Voor meer informatie kunt u contact met ons opnemen.

Afmetingen en bevestiging

AxBxC (mm | inch)
PIANO MINI - 584x87x277 | 23.0x3.4x10.9
PIANO MIDI - 717x87x277 | 28.2x3.4x10.9
Gewicht (kg | lbs)
PIANO MINI - 7.0 | 15.4
PIANO MIDI - 10.0 | 22.0
Montagemogelijkheden
Opschuifbevestiging verticaal – Ø76mm
Opschuifbevestiging verticaal – Ø60mm
Opschuifbevestiging horizontaal – Ø48mm
Opschuifbevestiging horizontaal – Ø60mm
Opschuifbevestiging horizontaal – Ø42mm

Controlesystemen

Controle opties voor de Piano range

De Piano range biedt de volgende dim/controle opties:
· Bi-power
· Aangepast dim profiel
· AMPDIM
· 1 - 10V
· DALI
· Beheer op afstand

Control link

Installatie en onderhoud

Eenvoudige installatie en onderhoud

Om dit functionele kofferarmatuur toe te passen in uw buitenruimte kunt u de Piano LED verticaal (Ø48-60 of Ø76mm buis) en horizontaal (Ø48-60mm) bevestigen. De Piano is ontworpen om te voldoen aan ons FutureProof concept. Het elektronische blok kan ter plaatse vervangen worden om te profiteren van eventuele toekomstige technologische ontwikkelingen.

Masten en uithouders

Korda masten en uithouders

De Piano biedt in combinatie met de ”Korda” range van masten en uithouders (enkel, dubbel en gevelsteun) een elegant ensemble dat geschikt is voor het verlichten van woonwijken, voetgangersgebieden, parken en fietspaden. Het creëert aantrekkelijke ruimtes die het gevoel van veiligheid en welzijn verbeteren.

SCULPDOT

SCULPDOT

Versatile spotlight for accent and architectural lighting

Omschrijving

Designed to enhance architectural detail, sculptures and other features, the SCULPDOT is a useful tool for a careful lighting design, especially in combination with SCULPFLOOD luminaires.
Compact and elegant, the SCULPDOT is designed with no visible screws on the front of the frame to maintain the aesthetics.
SCULPDOT is composed of a die-cast aluminium body and a protector in tempered glass or polycarbonate.
Thanks to an external refractor, the beam can be easily adapted on-site. In addition, the associated bracket offers a degree angle indication system allowing for precise adjustment. All these features ease the fine-tuning of the installation for an optimal final result.

  • Reveal the true beauty of your architecture
  • The SCULPDOT ground lighting solution has been developed to enhance architectural details and landscape elements.
    SCULPDOT offers different colours and lighting scenarios for an optimal result that highlights the architectural splendour of your monuments, sculptures and edifices.

  • Dynamic lighting scenarios
  • The digital era of architectural lighting has opened up an infinite universe of creative opportunities. SCULPDOT can create numerous dynamic effects with control systems adjusting the intensity of the colours or the light colours emitted to create special ambiances or light shows for celebrations.

  • Flexible mounting
  • SCULPDOT comes with an integrated driver. However, as an option, the driver and the power supply can be installed remotely, enabling more flexible mounting options to satisfy specific constraints (such as high ambient temperatures).

  • Maintaining performance and robustness
  • The long life span of the LEDs and the robust materials (aluminium and glass), ensure that the photometric and mechanical performance are maintained over time.

Kenmerken

Aanbevolen installatiehoogte (m)
10.0
Certificering
Isolatieklasse
Nominale spanning
Overspanningsbeveiliging (kV)
10
Controle protocollen
Bijbehorend controlesysteem
Armatuur outpux flux (lm)
800 -
3700
Energieverbruik (W)
21.0 -
44.5
Armatuur efficiëntie - tot (lm/W)
83
LED kleur temperatuur
Kleur weergave index (CRI)
80
Behuizing
Aluminium
Lichtkap
Polycarbonate
Dichtheid
Schokweerstand
IK may be different according to the size/configurations. Please consult us.
Alle configuraties
Designed to highlight architectural details and landscape elements, SCULPDOT is a handy tool for a careful lighting design.

Afmetingen en bevestiging

AxBxC (mm | inch)
160x240x199 | 6.3x9.4x7.8
Gewicht (kg | lbs)
7.0 | 15.4
Montagemogelijkheden
Bracket enabling adjustable inclination

Controlesystemen

Control options for SCULPDOT

The SCULPDOT accent and architectural lighting solution offers the following control options:
• DMX-RDM
• DALI
• Custom dimming profile
To offer full scope solutions that enable elaborate and attractive scenarios to be created, SCULPDOT provides the perfect combination of state-of-the-art LED spotlights and leading-edge control systems.

Control link

Installatie en onderhoud

Flexible mounting options

Thanks to quick connectors, connections can be made without the need for stripping or special tools. The inclination angle - indicated on bracket of SCULPDOT - can be adjusted in function of the needs of your project.
Thanks to an external refractor, the beam can be easily adapted on-site. These features ease the fine-tuning of the installation and contribute to an optimal result.

Accessoires en versies

SCULPDOT accessories

SCULPDOT is available with various accessories including protection grids, barn doors and horizontal or vertical louvers.

SCULPDOT

SCULPDOT

Veelzijdige LED schijnwerper voor accent- en architecturale verlichting

Omschrijving

De SCULPDOT is ontworpen om architecturale details, beeldhouwwerken enz. te verbeteren, een nuttig hulpmiddel voor een zorgvuldig verlichtingsontwerp, vooral in combinatie met de SCULPFLOOD armaturen. Compact en elegant, de SCULPDOT is ontworpen zonder zichtbare schroeven aan de voorkant van het frame om de esthetiek te handhaven. SCULPDOT is samengesteld uit een gegoten aluminium behuizing en een lichtkap van gehard glas of polycarbonaat. Dankzij een externe refractor kan de lichtbundel eenvoudig ter plaatse aangepast worden. Bovendien biedt de bijbehorende beugel een hellingshoeksysteem waardoor afstelling ter plaatse mogelijk is. Al deze functies vergemakkelijken de nauwkeurige afstelling voor een optimaal eindresultaat.

  • Onthul de ware schoonheid van uw architectuur
  • De SCULPDOT verlichtingsoplossing is ontwikkeld om architectonische details en landschapselementen te verbeteren. SCULPDOT biedt verschillende kleuren en lichtscenario's voor een optimaal resultaat dat de architectonische pracht van uw monumenten, sculpturen en gebouwen benadrukt.

  • Dynamische verlichtingsscenario’s
  • Het digitale tijdperk van architecturale verlichting heeft een oneindig universum van creatieve mogelijkheden geopend. De SCULPDOT kan tal van dynamische effecten creëren met besturingssystemen die de intensiteit van de kleuren aanpassen of lichtkleuren uitsluiten voor speciale sferen of lichtshows maken voor vieringen.

  • Flexibele bevestiging
  • SCULPDOT wordt geleverd met een geïntegreerde driver. Echter kunnen de driver en voeding optioneel op afstand geïnstalleerd worden, waardoor er meer flexibiliteit ontstaat voor specifieke montage eisen (bijvoorbeeld hoge omgevingstemperatuur).

  • Prestaties en robuustheid behouden
  • De lange levensduur van de LEDs en de robuuste materialen (aluminium en glas) zorgen ervoor dat de fotometrische en mechanische prestaties in de loop der tijd gehandhaafd worden.

Kenmerken

Aanbevolen installatiehoogte (m)
10.0
Certificering
Isolatieklasse
Nominale spanning
Overspanningsbeveiliging (kV)
10
Controle protocollen
Controle opties
Bijbehorend controlesysteem
Armatuur outpux flux (lm)
800 -
3700
Energieverbruik (W)
21.0 -
44.5
Armatuur efficiëntie - tot (lm/W)
83
LED kleur temperatuur
Kleur weergave index (CRI)
80
Behuizing
Aluminium
Lichtkap
Polycarbonaat
Dichtheid
Schokweerstand
IK-waarde kan verschillen afhankelijk van de grootte/configuraties. Voor meer informatie kunt u contact met ons opnemen.
Alle configuraties
Designed to highlight architectural details and landscape elements, SCULPDOT is a handy tool for a careful lighting design.

Afmetingen en bevestiging

AxBxC (mm | inch)
160x240x199 | 6.3x9.4x7.8
Gewicht (kg | lbs)
7.0 | 15.4
Montagemogelijkheden
Beugel met instelbare hellingshoek

Controlesystemen

Controle opties voor SCULPDOT

De SCULPDOT accent- en architecturale lichtoplossing biedt de volgende controle opties:
· DMX-RDM
· DALI
· Dimprofiel

Om totaaloplossingen aan te bieden waarmee uitgebreide en aantrekkelijke scenario’s kunnen worden gecreëerd biedt de SCULPDOT de perfecte combinatie van state-of-the-art LED schijnwerpers en moderne controlesystemen.

Control link

Installatie en onderhoud

Flexibele montage opties

Dankzij de snelle connectoren kunnen verbindingen worden gemaakt zonder gebruik van speciale gereedschappen. De hellingshoek – aangegeven op de bevestigingsbeugel van de SCULPDOT – kan aangepast worden aan de behoeften van uw project. Dankzij een externe refractor kan de lichtbundel gemakkelijk ter plaatse aangepast worden. Deze functies vergemakkelijken de nauwkeurige afstelling voor een optimaal eindresultaat.

Accessoires en versies

SCULPDOT accessoires

SCULPDOT is leverbaar met diverse accessoires zoals beschermroosters, barn doors en horizontale of verticale louvres.

TAG

TAG

Boost tunnel safety and energy efficiency

Omschrijving

TAG takes advantage of the latest innovations to offer a compact, lightweight, easy-to-install, versatile and powerful tunnel lighting solution. Its flat and robust mechanical design minimises mounting constraints and ensures that the optical units occupy little space on the tunnel ceiling.
Available in two sizes, TAG improves the visual experience and boosts tunnel safety for drivers, while fully complying with the most stringent standards.
This tunnel luminaire has a low carbon footprint thanks to its compact design made of recyclable materials and its reduced energy consumption. TAG offers a complete tunnel solution that includes robust luminaires, smart cabling, various lighting distributions and advanced control systems to provide major operational benefits.

  • The safest tunnels
  • Driver safety is of utmost importance in tunnels. Accidents can rapidly become dangerous for everyone and can ultimately lead to a tunnel evacuation. This is why a well-lit tunnel minimises the risk of accidents and critical incidents; it increases visibility and enables drivers to detect a potential danger and react in due time to guarantee a safe stopping distance. It helps increase tunnel safety, as it complies with the most stringent standards.

  • Easy to install
  • TAG is composed of an optical unit and a separate gear box. With a lightweight body, a versatile mounting system and integrated quick-on connectors, it provides a flexible and easy mounting with a real plug-and-play philosophy. Several optical units can be connected to the same gear box.

  • Improved visual experience
  • This LED tunnel luminaire has been designed to enable the human eye to easily adapt when entering and exiting a tunnel. These zones need a constant adaptation of the lighting level to ensure a smooth transition in and out of the tunnel. TAG offers this flexibility to always deliver the appropriate lighting level.

  • Long lasting performance
  • This high-power LED solution is ideal to replace HID luminaires, especially in the entrance and exit zones of the tunnel. Designed for long lasting performance, TAG is available with a wide range of lighting distributions to suit numerous tunnel configurations. Thanks to its design with two separate electronic circuits, each TAG luminaire can be either dimmed completely, partially or even have 50% of its LEDs switched off. This ability increases energy savings and extends the lifetime of the complete installation.

OMNIBOX, ready for all challenges

The OMNIBOX is a separate driver box and the optical units can be easily connected with preassembled fire resistant cables to facilitate both installation and access for maintenance operations. One OMNIBOX can host the drivers and control unit (Lumgate) for up to 3 TAG luminaires.

Kenmerken

Aanbevolen installatiehoogte (m)
4.0 -
6.0
Isolatieklasse
Controle protocollen
Bijbehorend controlesysteem
Armatuur outpux flux (lm)
6600 -
56500
Energieverbruik (W)
53.0 -
466.0
Armatuur efficiëntie - tot (lm/W)
161
LED kleur temperatuur
Kleur weergave index (CRI)
70
Behuizing
Aluminium
Lichtkap
Tempered glass
Dichtheid
Schokweerstand
IK may be different according to the size/configurations. Please consult us.
Alle configuraties
Bedrijfstemperatuur range (Ta)
-25°C up to +45°C / -13° F up to 113°F
Depending on the luminaire configuration. For more details, please contact us.

Afmetingen en bevestiging

AxBxC (mm | inch)
TAG 1 - 350x80x280 | 13.8x3.1x11.0
TAG 2 - 611x80x280 | 24.1x3.1x11.0
Gewicht (kg | lbs)
TAG 1 - 4.3 | 9.5
TAG 2 - 7.6 | 16.7
Montagemogelijkheden
Bracket enabling adjustable inclination
Direct mounting on cable tray
Direct mounting on ceiling

Controlesystemen

Control options for TAG

TAG has the following dimming / control options:
· 1-10V
· DALI
· Custom dimming
· Lumgate

The TAG tunnel lighting solution can be managed by the Advanced Tunnel Control System (ATS) to offer the highest savings and to provide an optimal driving experience for drivers.

Control link

Installatie en onderhoud

Installation of optical units and gear box

This tunnel lighting solution consists of two main parts: the optical unit and the gear box. The optical unit of TAG offers 5 types of brackets, fixed, adjustable or swivelling, in stainless steel or galvanised steel. This mounting modularity allows TAG to meet a large type of tunnel configurations.
Equipped with quick-on connectors, up to 3 TAG luminaires can be powered by the same gear box.

Accessoires en versies

Fixed brackets

The fixed brackets allow standard mounting on flat surfaces, whether it is on walls or ceilings.

Pull-out brackets – suspended and wall

The pull-out fixation brackets facilitate the installation on walls and ceilings while the fixation consists of eliminating any luminaire weight constraints. The luminaire inclination can be easily adjusted to preset values varying from -20 to +20°.

Adjustable brackets – suspended and wall

The adjustable fixation brackets provide a flexible mounting for both walls and ceilings as they are capable of adapting to any tunnel configuration. The adjustable brackets enable slight shifts to the left or to the right in combination with a gradual inclination to deliver the ideal lighting for your tunnel.

TAG

TAG

Verbeter tunnelveiligheid en energie-efficiëntie

Omschrijving

TAG maakt gebruik van de nieuwste innovaties om een compact, lichtgewicht, eenvoudig te installeren, veelzijdig en krachtige tunnelverlichtingsoplossing te bieden. Het platte, compacte en robuuste mechanische ontwerp van de TAG minimaliseert de montage punten en zorgt ervoor dat de armaturen weinig ruimte innemen op het plafond. De TAG is verkrijgbaar in twee formaten, verbetert de visuele ervaring en verhoogt de veiligheid voor bestuurders, terwijl het volledig in overeenstemming is met de meest strikte normen. Dit tunnel armatuur heeft een lage ecologische voetafdruk dankzij het compacte ontwerp gemaakt van recyclebare materialen en het verminderde energieverbruik. TAG biedt een complete tunneloplossing met robuuste materialen, slimme bekabeling, diverse lichtdistributies en geavanceerde controlesystemen om grote operationele voordelen te bieden.

  • De veiligste tunnels
  • Veiligheid van de bestuurder is van het grootste belang in tunnels. Ongelukken kunnen snel gevaarlijk worden voor iedereen en kunnen uiteindelijk leiden tot tunnel evacuatie. Daarom minimaliseert een goed verlichte tunnel het risico op ongelukken en kritieke incidenten; het verhoogt de zichtbaarheid en stelt bestuurders in staat een potentieel gevaar op te sporen en tijdig te reageren om een veilige stopafstand te garanderen. Het helpt de veiligheid van de tunnel te verhogen, omdat deze voldoet aan de strengste normen.

  • Eenvoudig te installeren
  • TAG is samengesteld uit een optische unit en een aparte driver box. Met een lichtgewicht behuizing, een veelzijdig montagesysteem en geïntegreerde quick-on connectoren, vergemakkelijkt de TAG de montage werkzaamheden met een echte plug-and-play filosofie. Diverse optische units kunnen worden aangesloten op dezelfde driver box.

  • Verbeterde visuele ervaring
  • Dit LED tunnel armatuur is ontworpen om het menselijk oog gemakkelijk aan te laten passen bij het binnenkomen en verlaten van een tunnel. Deze zones hebben een constante aanpassing van het verlichtingsniveau nodig om een soepele overgang in en uit de tunnel te garanderen. TAG biedt deze flexibiliteit om altijd het juiste verlichtingsniveau te leveren.

  • Langdurige prestaties
  • Deze high-power LED oplossing is ideaal voor het vervangen van HID-armaturen, vooral in de ingangs- en uitgangszones van de tunnel. De TAG is ontworpen voor langdurige prestaties en is beschikbaar met een breed scala aan lichtdistributies voor tal van tunnel configuraties. Dankzij het ontwerp met twee afzonderlijke elektronische schakelingen kan elk armatuur volledig gedimd worden, gedeeltelijk of zelfs de helft van de LEDs uitgeschakeld worden. Deze mogelijkheid maximaliseert de energiebesparing en verlengt de levensduur van de volledige installatie.

OMNIBOX, klaar voor alle uitdagingen

De OMNIBOX is een aparte driver box en de optische units kunnen gemakkelijk worden aangesloten met de voorgemonteerde brandwerende kabels om zowel de installatie en de toegang voor onderhoudswerkzaamheden te vergemakkelijken. Eén OMNIBOX kan de drivers en besturing (Lumgate) voor maximaal 3 TAG armaturen behuizen.

Kenmerken

Aanbevolen installatiehoogte (m)
4.0 -
6.0
Isolatieklasse
Controle protocollen
Bijbehorend controlesysteem
Armatuur outpux flux (lm)
6600 -
56500
Energieverbruik (W)
53.0 -
466.0
Armatuur efficiëntie - tot (lm/W)
161
LED kleur temperatuur
Kleur weergave index (CRI)
70
Behuizing
Aluminium
Lichtkap
Gehard glas
Dichtheid
Schokweerstand
IK-waarde kan verschillen afhankelijk van de grootte/configuraties. Voor meer informatie kunt u contact met ons opnemen.
Alle configuraties
Bedrijfstemperatuur range (Ta)
-25 °C tot +45 °C
Afhankelijk van de armatuur configuratie. Voor meer informatie kunt u contact met ons opnemen.

Afmetingen en bevestiging

AxBxC (mm | inch)
TAG 1 - 350x80x280 | 13.8x3.1x11.0
TAG 2 - 611x80x280 | 24.1x3.1x11.0
Gewicht (kg | lbs)
TAG 1 - 4.3 | 9.5
TAG 2 - 7.6 | 16.7
Montagemogelijkheden
Beugel met instelbare hellingshoek
Directe montage op kabelgoot
Directe bevestiging op plafond

Controlesystemen

Controle opties voor TAG

TAG heeft de volgende dim/controle opties:
· 1-10V
· DALI
· Aangepast dimprofiel
· Lumgate

De TAG tunnelverlichtingsoplossing kan worden beheerd door het Advanced Tunnel Control System (ATS) om de hoogste besparingen te bieden en een optimale rijervaring voor chauffeurs te bieden.

Control link

Installatie en onderhoud

Installatie van optische units en gear box

Deze tunnelverlichtingsoplossing bestaat uit twee hoofdonderdelen: de optische unit en de gear box. De optische unit van de TAG biedt 5 soorten beugels, vast, instelbaar of zwenkbaar, in roestvrij staal of gegalvaniseerd staal. Door deze montagemodulariteit kan TAG voldoen aan een groot aantal tunnelconfiguraties. TAG is uitgerust met quick-on connectoren. Maximaal 3 TAG armaturen kunnen worden aangedreven door dezelfde gear box.

Accessoires en versies

Vaste beugels

De vaste beugels maken standaard montage op vlakke oppervlakken mogelijk, of het nu op muren of plafonds is.

Uittrekbare beugels – hangend of aan de muur

De uittrekbare bevestigingsbeugels vergemakkelijken de installatie op wanden en plafonds, terwijl de bevestiging bestaat uit het elimineren van alle gewichtsbeperkingen van het armatuur. De hellingshoek van het armatuur kan eenvoudig worden aangepast aan vooraf ingestelde waarden variërend van -20 tot +20°.

Instelbare beugels – hangend of aan de muur

De instelbare bevestigingsbeugels bieden een flexibele montage voor zowel wanden als plafonds, aangezien ze zich kunnen aanpassen aan elke tunnelconfiguratie. De instelbare beugels maken lichte verschuivingen naar links of rechts mogelijk in combinatie met een geleidelijke helling om de ideale verlichting voor uw tunnel te leveren.

How LED lighting helps workers to feel alert

Cedric Collard - Schréder Sports Segment Manager
Cédric Collard
Business Segment Manager - Industry & large area

We all know how much brighter and more energetic we feel if we take a walk in the sunshine. But light has a vital impact in the workplace too. Exposure to well-designed LED lighting can improve our mood, cognitive performance and even make us more alert.

In an industrial environment, where staff safety can be at risk, the importance of being alert cannot be underestimated. In truth, it can make the difference between good health and injury, or even life and death.

According to Eurostat, the European Union’s statistic office, during 2015 almost one third (31.6 %) of all non-fatal work accidents occurred on industrial sites1.

There’s no doubt that moving machinery, vehicles and working at height all create a hazardous environment, which means workers need to be constantly on their guard.

Schréder LED lighting solutions help employees stay alert for better productivity

The danger of fatigue

In this setting, fatigued workers are a danger to themselves and others. Their reactions will be slower, their coordination impaired and they will be less accurate at assessing risk. Shocking figures from the Health and Safety Executive suggest that fatigue costs the UK £115-240million every year in workplace accidents2.

And on an extreme level, it has been cited as a cause of major international disasters, including Chernobyl and the Exxon Valdez oil spill.

For the one-in-five European industrial workers employed on night shifts, this issue is even more critical. Night packers, machinery operators and lorry drivers desperately need to be alert, just when their bodies are craving sleep.

It’s an issue that’s considered so important, The University of Bergen is carrying out a five-year project to investigate how aspects of the physical work environment (including light conditions) can be arranged to help staff adapt to night shifts3


The LED solution

So, what can be done to help workers feel less fatigued, and more alert?

Thankfully, human-centric LED lighting systems can help mitigate some of the challenges, because of its ability to simulate daylight. Studies find that staff working under white light report greater alertness, enhanced performance and also better sleep.
And of course, an employee who sleeps better will also perform better in the long term.

This relationship is recognised by the WELL Building Standard, a performance-based system for measuring, certifying and monitoring features of the built environment that impact human health and wellbeing.

BREEAM, the world’s leading sustainability assessment method for masterplanning projects, infrastructure and buildings, also recognises the value in higher performing assets, including lighting, across the built environment lifecycle.

Unlike traditional lamps, which have a Colour Rendering Index of less than 50, our LED systems have a high CRI of 80 plus. This means they have a far better ability to replicate daylight, enabling workers to feel more energised and alert as a consequence.

The outcome? A happier workforce, and potentially less accidents too.


Improved hazard detection

If you have any doubt around the visual safety benefits of modern LED lighting, consider a study performed by the National Institute for Occupational Safety and Health.


Researchers discovered that miners equipped with a specially-developed LED cap lamp benefited from 194% improvement in floor hazard detection. They also experienced a 79% improvement in peripheral motion detection, which is critical for identifying moving hazards4.


This study may have focused on the mining industry, but it shows the dramatic difference optimum lighting can make.

With trips and falls accounting for 25% of major injuries sustained in warehousing, well-designed LED lighting has the potential to eliminate a large proportion of accidents. And it doesn’t just help workers see better, it helps them feel more comfortable and alert too.

Our LED lighting systems offer the perfect way to improve the safety of your workspace, and reduce the likelihood of injury.

Your employees are your biggest asset, and investing in their security and well-being will bring your business the highest rewards


About the writer

Cédric joined Schréder in 2013 with a solid experience in marketing. With his expertise and industry knowledge, Cédric leads the Industry and Large Area Business segments including Sport Lighting and Breeam certification. He collaborates with our research, product development, sales teams worldwide and sport associations to deliver sustainable and energy efficient lighting solutions, tailored to each individual project using the latest in lighting calculation software, lighting management systems and BIM techniques.

Connect with Cédric on LinkedIn



Sources

1 - https://ec.europa.eu/eurostat/statistics-explained/index.php/Accidents_at_work_statistics
2 - http://www.hse.gov.uk/humanfactors/topics/fatigue.htm
3 - https://www.uib.no/en/rg/sc/120922/effects-bright-light-intervention-adaptation-night-work-shift-work-simulation
4 - https://www.cdc.gov/niosh/docs/2011-192/

Hoe LED verlichting helpt werknemers alert te houden

Cedric Collard - Schréder Sports Segment Manager
Cédric Collard
Business Segment Manager - Industry & large area

We weten allemaal hoeveel lichter en energieker we ons voelen als we een wandeling maken in de zon. Maar licht heeft ook een vitale impact op de werkplek. Blootstelling aan goed ontworpen LED verlichting kan onze stemming en waarneming verbeteren en ons zelfs alerter maken.

In een industriële omgeving, waar de veiligheid van het personeel in gevaar kan komen, kan het belang van een waarschuwing niet worden onderschat. In werkelijkheid kan het het verschil maken tussen goede gezondheid en letsel, of zelfs leven en dood.

Volgens Eurostat, het statistiek Bureau van de Europese Unie, heeft sinds 2015 bijna één derde (31,6%) van alle niet-fatale arbeidsongevallen plaatsgevonden op een industriële plek1.

Er is geen twijfel over dat bewegende machines, voertuigen en werken op hoogte allemaal een gevaarlijke omgeving creëren, wat betekent dat werknemers voortdurend op hun hoede moeten zijn.

Schréder LED lighting solutions help employees stay alert for better productivity

Het gevaar van vermoeidheid

In deze setting zijn vermoeide werknemers een gevaar voor zichzelf en anderen. Hun reactievermogen zal langzamer zijn, hun coördinatie is verstoord en ze zullen minder nauwkeurig zijn bij het beoordelen van risico's. Schokkende cijfers van de Health and Safety Executive suggereren dat ongelukken door vermoeidheid op de werkplaats het Verenigd Koninkrijk £ 115-240 miljoen per jaar kost2.

En op een extreem niveau is het genoemd als een oorzaak van grote internationale rampen, waaronder Tsjernobyl en de olieramp van de Exxon Valdez.

Voor één op de vijf Europese industriële werknemers die bij nacht ploegen werkzaam zijn, is deze kwestie nog kritischer. Inpakkers, machinebediendes en vrachtwagenchauffeurs die ’s nachts werken moeten heel alert zijn, net wanneer hun lichamen hunkeren naar slaap.

Het is een probleem dat zo belangrijk wordt geacht dat de Universiteit van Bergen een vijfjarig project uitvoert om te onderzoeken hoe aspecten van de fysieke werkomgeving (inclusief lichtomstandigheden) kunnen worden geregeld om het personeel aan te passen aan de nacht shifts3.



De LED oplossing

Dus, wat kan worden gedaan om werknemers zich minder vermoeid te laten voelen en alerter te laten zijn?

Gelukkig kunnen mensgerichte LED-verlichtingssystemen sommige van de uitdagingen helpen verzachten, vanwege de mogelijkheid om daglicht te simuleren. Studies wijzen uit dat medewerkers die werken onder wit licht alerter zijn, beter presteren en ook beter slapen.
En natuurlijk zal een werknemer die beter slaapt ook op de lange termijn beter presteren.

Deze relatie wordt erkend door de WELL Building Standard, een op prestaties gebaseerd systeem voor het meten, certificeren en bewaken van kenmerken van de gebouwde omgeving die van invloed zijn op de menselijke gezondheid en het welzijn.

BREEAM, 's werelds toonaangevende duurzaamheids-beoordelingsmethode voor master planning projecten, infrastructuur en gebouwen, erkent ook de waarde in hogere presterende activa, inclusief verlichting, over de gebouwde levenscyclus van de omgeving.

In tegenstelling tot traditionele lampen, die een kleurweergave-index hebben van minder dan 50, hebben de LED-systemen van Schréder een hoge CRI van 80 Plus. Dit betekent dat ze een veel beter vermogen hebben om daglicht te repliceren, waardoor werknemers zich meer energiek en alert kunnen voelen.

Het resultaat? Een gelukkiger personeelsbestand en mogelijk ook minder ongelukken.



Verbeterde gevaren detectie

Als u twijfelt over de visuele veiligheidsvoordelen van moderne LED-verlichting, overweeg dan de uitkomsten van de studie uitgevoerd door het Nationaal Instituut voor Occupational Safety and Health.


Onderzoekers ontdekten dat mijnwerkers uitgerust met een speciaal ontwikkelde LED hoofdlamp profiteerde van 194% verbetering van gevaar detectie op de vloer. Ze ondervonden ook een verbetering van 79% in bewegingsdetectie, wat cruciaal is voor het identificeren van bewegende gevaren4.


Deze studie heeft zich misschien geconcentreerd op de mijnbouwindustrie, maar het toont het dramatische verschil dat optimale verlichting kan maken.

Met struikelen en vallen die 25% van de zware verwondingen in magazijnen veroorzaken, heeft goed ontworpen LED verlichting het potentieel om een groot deel van de ongevallen te elimineren. En het helpt werknemers niet alleen om beter te zien, het zorgt ervoor dat ze zich comfortabeler en alert voelen.

De LED verlichtingssystemen van Schréder bieden de perfecte manier om de veiligheid van uw werkruimte te verbeteren en de kans op letsel te verkleinen.

Uw medewerkers zijn uw grootste troef, en investeren in hun veiligheid en welzijn zal uw bedrijf de hoogste beloning brengen.
